General Product Overview
| Attribute |
Detail |
| Product Type |

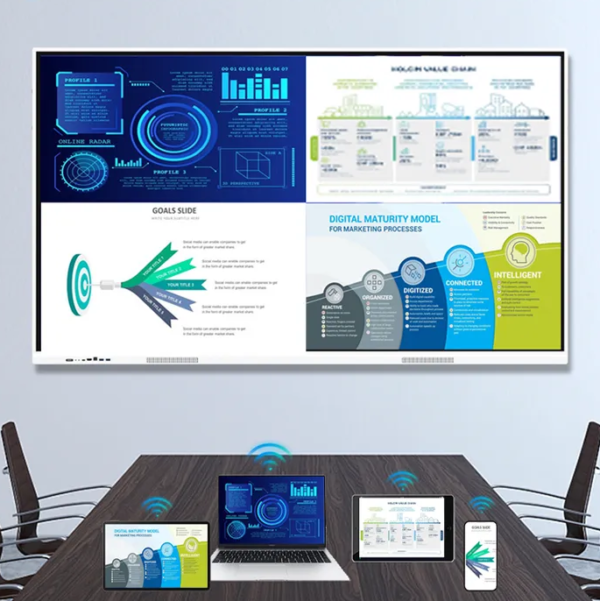

Interactive Flat Panel |
| Model Identification |
IS-6517 |
Display Panel Specifications
| Feature |
Specification |
| Backlight Type |
D-LED |
| Screen Size |
86 inch |
| Aspect Ratio |
16:9 |
| Physical Resolution |
3840 x 2160 (4K Ultra HD) |
| Refresh Rate |
60 Hz |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1200:1 (Dynamic Contrast: 5000:1) |
| Viewing Angle |
178° (Horizontal) / 178° (Vertical) |
| Display Colors |
1.07 Billion (10-bit) |
| Response Time |
8 ms |
| Life Time |
50,000 Hours |
Touch & Glass Specifications
| Feature |
Specification |
| Touch Sensing Technology |
Infrared Touch |
| Glass Specification |
4mm anti-glare tempered glass with zero gap bonding technology |
| Touch Accuracy |
±1 mm |
| Touch Response Time |
≤ 10 ms |
| Multi-Touch Points |
20 Points Touch |
| Writing Tools |
Finger, Stylus, or any non-transparent object |
| Dual Pen Support |
Supports dual pens and dual color displays for multi-person collaboration |
System & Processing Architecture
| Component |
Configuration |
| Operating System |
Android 13.0 |
| CPU Architecture |
Quad-core (Cortex A73 x 2 + Cortex A53 x 2) |
| GPU |
Mali-G52 MP2 |
| System Memory (RAM) |
8GB |
| Internal Storage (ROM) |
128GB |
| OPS Slot Expansion |
Built-in internal slot for optional Open Pluggable Specification PC |
Connectivity & Ports
| Input Ports (Rear / Side) |
Quantity |
Output & Control Ports |
Quantity |
| HDMI In |
3 |
HDMI Out |
1 |
| USB 3.0 |
3 |
Touch Out (USB) |
2 |
| USB 2.0 |
1 |
Audio Out (Earphone) |
1 |
| Type-C |
1 |
SPDIF Out |
1 |
| LAN (RJ45) |
2 |
RS232 Control |
1 |
| AV In |
1 |
RF (TV Tuner) |
1 (Optional) |
Wireless & Audio Ecosystem
| Category |
Specifications |
| Wi-Fi |
Wi-Fi 6, Dual-Band 2.4GHz / 5G, supporting AP+STA modes |
| Network Sharing |
One network support (Android and modular PC both on Gigabit network) |
| Speakers |
Integrated high-fidelity speakers (2 x 15W) |
Power & Physical Characteristics
| Feature |
Specification |
| Power Requirements |
100V – 240V AC, 50/60 Hz |
| Maximum Power Consumption |
≤ 450W |
| Standby Power Consumption |
≤ 0.5W |
| Vesa Mount Pattern |
800 x 600 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
