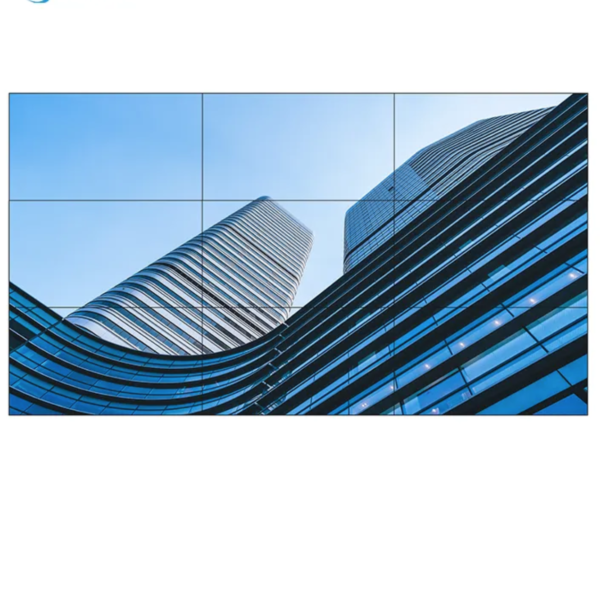

Video Wall 136″ COB

General Product Overview

Attribute	Detail
Product Type	Video Wall Display (All-In-One LED Wall)
Size Class	136″
Display Technology	COB (Chip-on-Board) Packaging Technology
Primary Capabilities	Full HD (1920 × 1080) native resolution, ultra-slim design, intelligent automatic brightness adjustment, and multiple system compatibility.

Core Key Performance Indicators

• Diagonal Size: 136 inches

• Aspect Ratio: 16:9

• Pixel Pitch: 1.56 mm

• Maximum Brightness: 600 nits

• Refresh Rate: 3,840 Hz

Main Features & Product Highlights

• Advanced COB Packaging: High-density, integrated encapsulation that provides superior protection against impact, dust, and moisture while offering wide viewing angles and uniform color consistency.

• Ultra-Slim & Minimalist Design: Lightweight mechanical engineering with a narrow frame profile to optimize viewing area and seamlessly fit modern spaces.

• Smart Maintenance Framework: Modular front-access maintenance structure allowing hot-swapping of LED modules, receiving cards, and power supplies for effortless servicing.

• Intelligent Environment Adaptation: Equipped with an ambient light sensor that adjusts screen brightness dynamically according to surrounding conditions to prevent eye strain and save energy.

Technical Specifications

Display Panel Parameters

Feature	Specification
Aspect Ratio	16:9
Native Resolution	1920 × 1080 (Full HD)
Pixel Configuration	3-in-1 SMD / COB LED encapsulation
Application Environments	Indoor professional configurations (e.g., corporate meeting rooms, video conferencing spaces, education centers, control rooms)

Optical & Luminescence Parameters

Feature	Specification
Pixel Pitch	1.5625 mm
Module Resolution	100 × 150 pixels
Brightness	600 nits
Contrast Ratio	5000:1
Viewing Angles	Horizontal: 170° / Vertical: 170°
Color Temperature	2000K – 9500K (Adjustable)
Luminescence Uniformity	≥ 98%
Color Uniformity	Within ± 0.003 Cx, Cy

Electrical & System Performance

Feature	Specification
Operating System	Embedded Android system architecture
Refresh Rate	3,840 Hz
Gray Scale Depth	14 – 16 bit
Processing System	Proprietary internal LED video processing framework
Service Lifetime	≥ 100,000 hours (to 50% initial brightness)

Input & Output Interfaces

Port Type	Quantity / Details
HDMI Input	3 ports
HDMI Output	1 port
USB 2.0 / USB 3.0	Available peripheral connections
LAN Port (RJ45)	Network input and loop output routing capabilities
Audio Outputs	Analog Earphone out and Digital SPDIF out
Control Formats	USB, LAN, RS232 protocols

Compatibility, Software, & Integration

• Universal Operating Support: Native compatibility across multiple client systems including Windows, Android, Linux, Mac OS X, and Chrome.

• Wireless Collaboration: Supports high-definition wireless screen mirroring from mobile phones, tablets, and laptops.

• Multitasking Window Layouts: Features advanced multi-signal split-screen windows allowing real-time parallel execution of multiple data tasks.

• Interactive Whiteboard Engine: Integrated presentation software built-in with precise pen tools, shape correction, and native collaborative asset annotation.

Physical Deployment Configurations

Mounting Architecture	Layout Profile Description
Wall-Mounted Installation	Flush, structural rear wall-anchored bracket setup for a static architectural look.
Mobile Stand Deployment	Heavy-duty structured floor-standing cart with locking wheels for quick transport and spatial versatility across corporate layouts.
