Electric Mobile Stand for Interactive Panel
Product Overview
-
Product Classification: Motorized / Intelligent Display Mobile Stand.
-
Model Framework: EST09 Series.
-

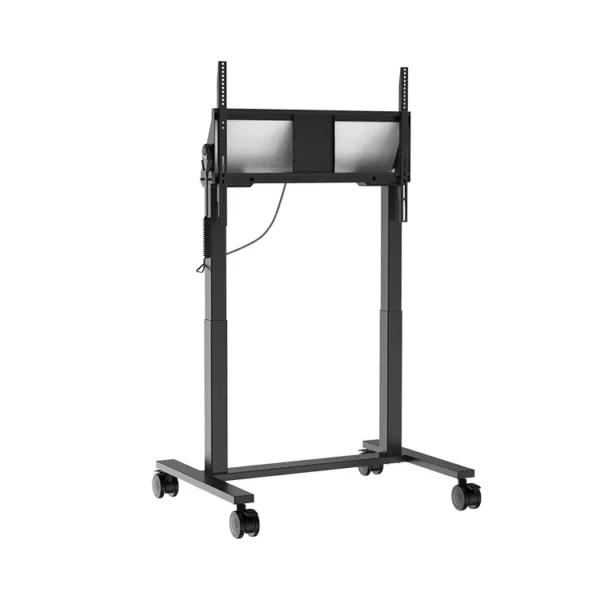

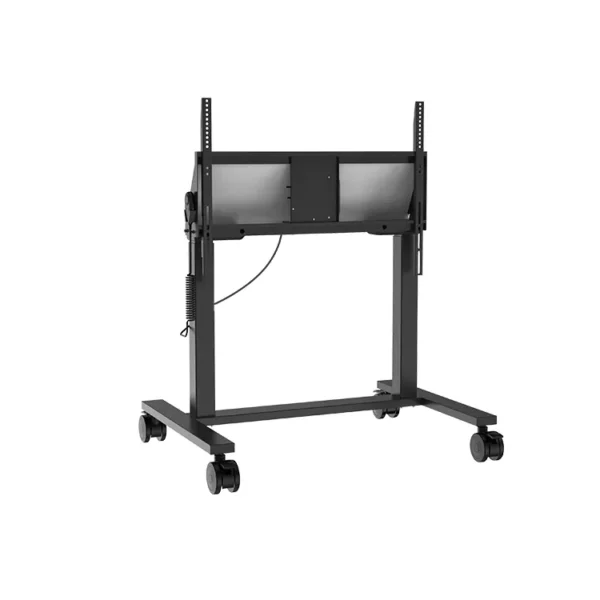

Primary Features: Equipped with multi-directional orthographic views (top, bottom, front, back, and profiles) showcasing an integrated mechanical lift column, lower floor stabilization bars, a dedicated display interface matrix, and heavy-duty casters.
Physical & Mechanical Specifications
| Parameter Attribute | Specification Detail |
| Assembled Dimensions ($\text{L} \times \text{W} \times \text{H}$) | $1036 \times 737 \times (1228 \sim 1728)\text{ mm}$ |
| Package Dimensions ($\text{L} \times \text{W} \times \text{H}$) | $1124 \times 814 \times 189\text{ mm}$ |
| Power Requirements | 100V ~ 240V AC |
| Motorized Lifting Distance | 500 mm |
| Gross Weight | 35.4 kg |
| Net Weight | 31.2 kg |
| Largest Bearing (Max Load Capacity) | 100 kg |
| Maximum Recommended Load Size | Recommended for screens no more than 86 inches |
| Control Modes | Control Panel / Control Pad / Software Integration |
| Caster Assembly | 4-inch Mute Casters |
| Wall-Hanging Support Standard | WIB9060H |
Accessories Package Component List
The standard product packaging includes the following components:
-
AC Power Cable: 1 unit (pre-installed onto the unit hardware).
-
USB Adapter Cable: 1 unit.
-
Hand Controller: 1 unit.
-
Screw Accessory Package: 2 sets.
-
Installation Manual & Instructions for Use: 1 copy.
Environmental Operational Constraints
The mechanical and electronic components are certified to run within the following environmental limits:
-
Operation Temperature Range: 0°C to 40°C
-
Operation Ambient Humidity: 10% to 90% RH (Non-condensing)
-
Storage Temperature Range: -20°C to 60°C
-
Storage Ambient Humidity: 10% to 90% RH
-
Operational Altitude Ceiling: Below 2000 meters
