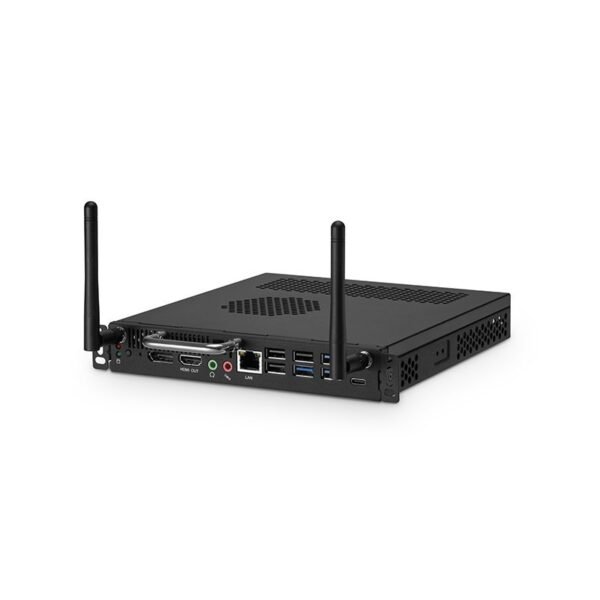

IS-I3G14 OPS PC

Product Overview & Key Characteristics

• Processor Versatility: Built to house an Ice Lake to 14th Gen Intel Core (i3, i5, i7) processor infrastructure.

• Type-C Interface: Outfitted with a multi-purpose Type-C interface supporting video transmission alongside USB 3.0 data streams.

• Ultra-HD Display Support: The HDMI, DisplayPort (DP), and JAE 80-Pin pathways natively support $4\text{K } @\text{ 60Hz}$ or higher video output across all communication channels.

• Memory & Storage Scalability: Supports dual-channel SO-DIMM DDR4 memory layouts alongside ultra-fast M.2 solid-state drives.

• Standardized Connection: Integrates an industrial JAE 80-Pin standard docking interface for seamless display slotting.

• Hardware Security: Native onboard support for Trusted Platform Module (TPM 2.0).

Detailed Technical Specifications

Core Hardware Parameters

Component	Specification
CPU	Intel Core i3 14th Gen 14100 Series (Up to 4.7GHz)
Memory	8GB DDR4 3200MHz RAM
Storage (Primary)	1 × M.2 2280 Slot supporting NVMe and SATA dual protocols (256GB NVMe SSD included)
Storage (Secondary)	1 × 2.5″ SATA Internal HDD/SSD Bay
Graphics Card	Integrated Intel UHD Graphics 730
Display Output Capabilities	HDMI / DP supporting simultaneous synchronous and asynchronous dual-display configurations

Network & Wireless Connectivity

• Local Area Network (LAN): Integrated Gigabit Ethernet controller

• Wireless Networking (Wi-Fi): Wi-Fi $802.11\text{b/g/n}$ (Built-in onboard or via M.2 expansion slot)

• Bluetooth Module: Version 5.X

I/O Interface Array

Front Panel Interfaces

• 1 × HDMI Out ($4\text{K } @\text{ 60Hz}$)

• 2 × USB 3.0

• 1 × USB 2.0

• 1 × Type-C

• 1 × RJ45 LAN

• 1 × Audio Line-Out

• 1 × Microphone In

• 1 × Power Button

• 1 × Reset Button

Back Panel Interface

• 1 × JAE 80-PIN Interface (Configured with HDMI 2.0 Out supporting $4\text{K } @\text{ 60Hz}$ and system telemetry pass-through)

Physical, Electrical & Environmental Constraints

Power & Mechanical Profile

• Power Input Requirements: DC 12V / 19V

• Physical Dimensions: Bare Metal Chassis: $195 \times 180 \times 42\text{ mm}$ or $195 \times 180 \times 30\text{ mm}$

• Weight Parameters: Net Weight $\approx$ 1.2 kg | Gross Weight $\approx$ 1.4 kg

Operating Environment

Condition	Parameter Range
Working Temperature	0°C to 45°C
Storage Temperature	-40°C to 80°C
Working Ambient Humidity	10% to 95% @ 40°C (Non-condensing)

Operating System Support

• Natively compatible with Windows 8, Windows 10, Windows 11, and Linux distributions.
