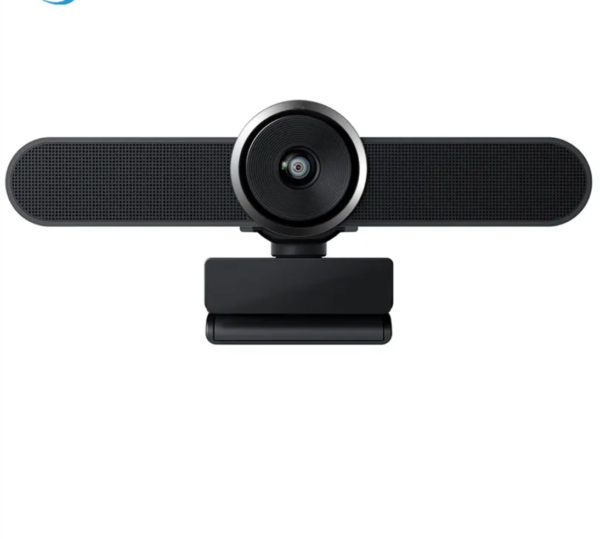

Full HD Video Conference Camera
● HD 1080P CMOS Sensor
● Plug & Play Micro Usb Connectivity
● Super Wide 124° Field of View
● Compatible Main Streaming Software
● Built-in Microphone and Speaker
● All-in-one Design
Product Family Lineup Comparison
The product series consists of three distinct models tailored to different audio-visual requirements:
| Feature / Parameter | Model: FHD200 | Model: FHD200 Pro | Model: UHD200 |
| Chassis Color | Black | Black + Silver | Iron Gray + Silver |
| Image Sensor | 1/2.7″ CMOS (OV2710) | 1/2.7″ CMOS (OV2710) | 1/2.3″ CMOS (SONY IMX377) |
| Effective Pixels | 2.10 Megapixels | 2.10 Megapixels | 11.10 Megapixels |
| Supported Resolutions | 1080p ($1920 \times 1080$) | 1080p ($1920 \times 1080$) | 4K ($3840 \times 2880$), 2K ($2560 \times 1440$), 1080p ($1920 \times 1080$) |
| Microphone Configuration | Built-in 2 Microphones | Built-in 1 Microphone | Built-in 1 Microphone |
| Integrated Speaker | No | Built-in 1 Speaker | Built-in 1 Speaker |
Comprehensive Technical Specifications (Pro/All-in-One Models)
The following parameters detail the core structural and operational specifications of the integrated audio-video hardware:
-
Optical Performance:
-
Lens: 2.2mm wide view angle focal array.
-
Field of View (FOV): $124^\circ$ super-wide field of view to capture everyone in the room, including those seated close to the camera edges.
-
Minimum Illumination: 350 Lux.
-
White Balance: Automatic regulation.
-
Frame Rate (Fps): Maximum 30fps under MJPEG compression.
-
-
Audio Engineering:
-
Microphone Polar Pattern: Omnidirectional sound pickup orientation.
-
Frequency Response: 20Hz – 20KHz.
-
Sensitivity: -33dBFS.
-
Sound Pickup Radius: 3 meters high-fidelity linear range.
-
Impedance: $4\Omega$.
-
-
Electrical & Interface Elements:
-
Interface Connector: Micro USB.
-
Power Supply Requirements: USB Bus Power, DC 5V, 70mA.
-
Power Consumption: 2W maximum draw.
-
Physical Cable: 3-meter length included.
-
-
Physical Proportions:
-
Product Dimensions: $262\text{ (W)} \times 85.5\text{ (D)} \times 110\text{ (H) mm}$.
-
Net Product Weight: 0.33 kg.
-
Software Compatibility & System Integration
-
Supported Operating Systems: Natively compatible with Windows 7, 8, 10, and Mac OS X 10.10 or higher.
-
Streaming & Communication Apps: Complete UVC compliance and seamless plug-and-play integration across leading platforms, including Skype for Business, Microsoft Lync, Zoom, Polycom, Cisco Jabber, WebEx, FaceTime, BlueJeans, Broadsoft, Starleaf, Pexip, Vidyo, Google Hangouts, and GoToMeeting.
Installation & Setup Guidelines
The camera utilizes a compact, all-in-one form factor designed to take up minimal workspace and eliminate desk cable clutter.
-
Physical Mounting: Grasp the webcam and open the flexible/clip integrated base. Mount the unit securely on top of the screen or monitor, ensuring the foot of the flexible clip base rests completely flush against the back of your monitor frame.
-
Hardware Connection:
-
Display/TV Setup: Connect the USB cable directly from the webcam to the dedicated USB port of your Smart TV or interactive display.
-
PC/Laptop Setup: Alternatively, plug the USB cable straight into an open USB port on your desktop computer or laptop. No additional drivers or software configurations are needed (Plug & Play).
-
-
Minimum Network Requirements for 1080p Video Calling: To maintain a smooth, full HD 1080p stream, a stable broadband internet connection with a minimum upload speed of 2 megabits per second (2 Mbps) is required.
